Inside the LSTM Vault: Interactive Insights into Long Short-Term Memory

Inside the LSTM Vault:                                               Interactive Insights into Long Short-Term Memory
Photo by Peter Herrmann / Unsplash


When it comes to teaching computers to understand and work with sequences of information, a special kind of neural network called Long Short-Term Memory (LSTM) has proven to be incredibly useful. LSTM is like a smart memory system that can remember important things, forget unnecessary details, and make predictions based on what it has learned. In this blog post, we will explore how LSTM works and why it has become so popular for analyzing data that comes in a sequence, like sentences, music, or time-dependent patterns.


Need for LSTM:

Traditional RNNs suffer from the vanishing gradient problem, making it challenging to capture long-term dependencies. LSTM was introduced to overcome this limitation by incorporating memory cells and gating mechanisms. These components enable LSTM networks to selectively remember and forget information over extended sequences, making them highly effective in handling time series data and tasks involving context preservation.

What is the vanishing gradient problem?

The vanishing gradient problem is a challenge that arises when training traditional neural networks, particularly recurrent neural networks (RNNs), to capture long-term dependencies in sequential data. During the process of backpropagation, which is used to update the network's weights based on the error, gradients (derivatives of the loss function with respect to the weights) are calculated and propagated backward through the layers.


In the case of deep networks with many layers, the gradients can diminish or "vanish" as they are back-propagated from the output layer to the earlier layers. This happens because the gradients are multiplied by the weights during each step, and if these weights are less than 1, the gradients tend to shrink exponentially. As a result, the earlier layers receive very small gradients, making it difficult for them to learn meaningful representations or capture long-term dependencies in the data.

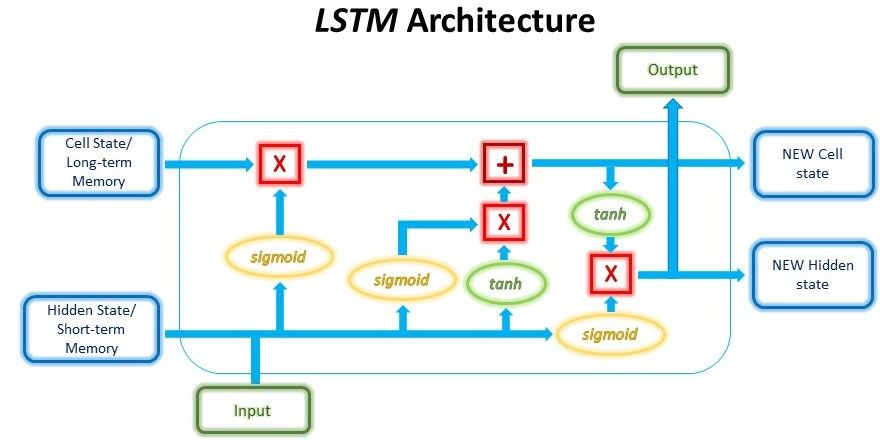

Inside LSTM:

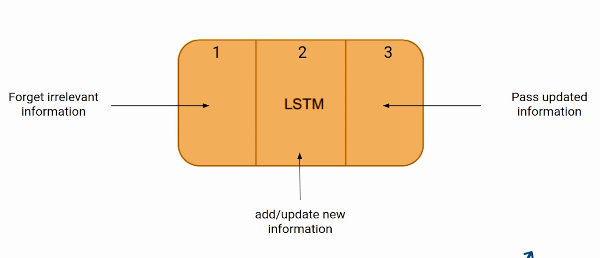

LSTM units consist of three key components: the input gate, the forget gate, and the output gate. These gates control the flow of information, enabling the network to selectively update and retain memory


1.Input Gate:

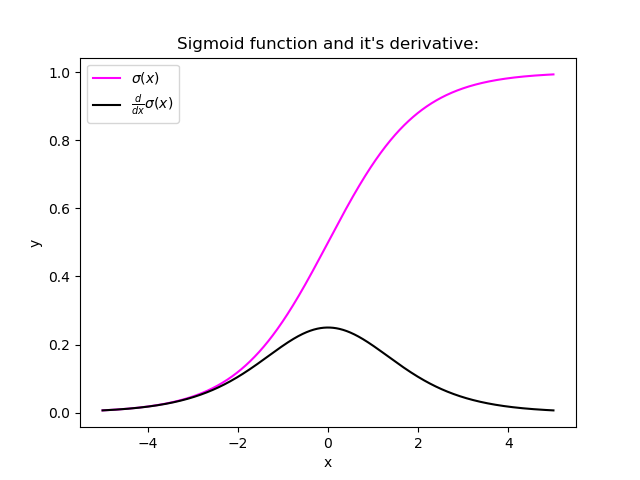

The input gate determines which parts of the input should be stored in the memory cell. It takes into account the current input, the previous output, and the context from the previous time step. By applying a sigmoid activation function, it produces a value between 0 and 1 for each element of the input, indicating the significance of the information.

2.Forget Gate:

The forget gate decides what information to discard from the memory cell. It takes the same inputs as the input gate and produces a forget vector that ranges from 0 to 1 for each element of the memory cell. This vector determines which elements should be preserved and which should be forgotten.

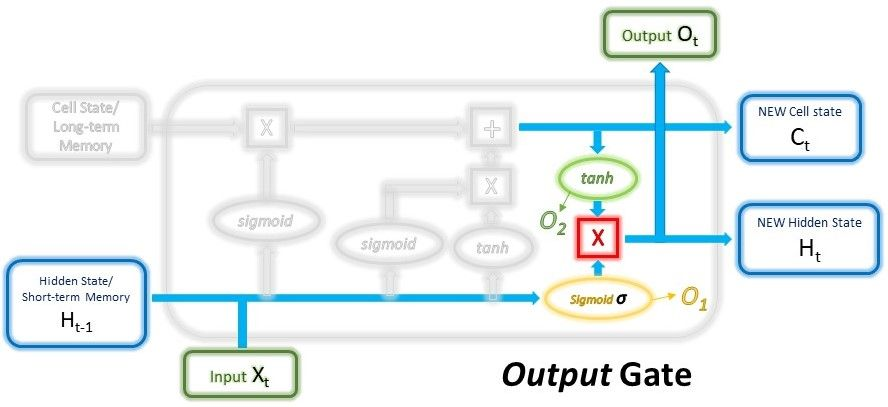

Output Gate:

The output gate regulates the output based on the memory cell state. It takes the input, previous output, and context as input and produces the output of the LSTM unit. By applying a sigmoid activation function to the memory cell, it determines which parts of the memory cell to reveal as the output.

Training and Backpropagation:

LSTM networks are trained using backpropagation through time (BPTT), an extension of the backpropagation algorithm for recurrent architectures. BPTT allows gradients to flow backward through the sequence, updating the network's parameters. This process enables the LSTM to learn the optimal weights for the gates and memory cells.

Applications of LSTM:

LSTM has found wide-ranging applications across various domains, showcasing its versatility and effectiveness. Some notable applications include:

Language Modeling: LSTM models excel in natural language processing tasks such as text generation, sentiment analysis, and machine translation.

Speech Recognition: LSTM networks are widely used in speech recognition systems to convert audio signals into text. They can effectively model the temporal dependencies present in speech data.

Time Series Prediction: LSTM's ability to capture long-term dependencies makes it suitable for predicting stock prices, weather patterns, and other time-dependent phenomena.

Gesture Recognition: LSTM networks have been successful in recognizing and classifying hand gestures, enabling applications in sign language recognition and human-computer interaction.


LSTM has revolutionized the field of deep learning by addressing the limitations of traditional RNNs in capturing long-term dependencies. Its ability to selectively retain and discard information through memory cells and gating mechanisms makes it a powerful tool for modeling sequential data. With a wide range of applications and ongoing research, LSTM continues to drive innovation and pave the way for advancements in fields such as natural language processing, speech recognition, and time series analysis. As deep learning continues to evolve, LSTM remains an indispensable asset in the data scientist's toolkit.

Do Checkout:

To Know about our product named Aiensured link.

To know more about explainability and AI-related articles please visit this link.

By S.B.N.V.Sai Dattu
